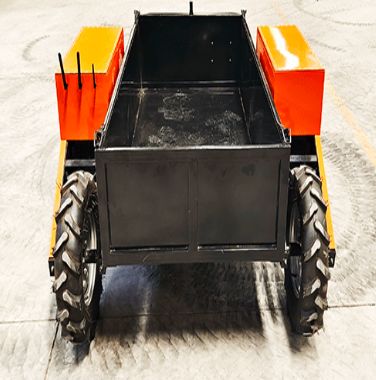

RXR-MC40BD Ground Search Robot 10KG Grab 500m Control

उत्पत्ति के प्लेस: चीन ब्रांड नाम: topsky

विस्तार जानकारी

सामग्री: उच्च शक्ति समग्र सामग्री रफ़्तार: 2
ट्रान्सिमिसन नियंत्रण: 50 मीटर मैनिपुलेटर मैक्स ग्रैब: 10 किग्रा
विस्तारित लंबाई: 4.9 मी सिस्टम बिजली की आपूर्ति: 24V
बॉडी वेट: 16 किलोग्राम नमूना: RXR-MC40BD
बंदरगाह: तेजी से परिनियोजन के लिए आसानी से परिवहन योग्य दूरी का उपयोग: ≤2 मी
मोटाई: 0.18 मिमी -0.3 मिमी। रोल स्थिरता कोण: 45 डिग्री
वायरलेस नियंत्रण दूरी: 500 मीटर कुल आउटपुट शक्ति: 3 डब्ल्यू
माप सीमा: 0-2.5 मिलीग्राम/एल
प्रमुखता देना:

ground search robot 10kg grab

,

counter terrorism robot 500m control

,

search robot with warranty

उत्पाद विवरण

Ground Debris Search Robot
Overview
The earthquake search robot is a power-driven loading machine with remote control capability. Equipped with advanced sensing devices, it achieves autonomous navigation and obstacle avoidance functions. Its detection module can identify human presence in complex terrains and collapsed areas. The large cargo platform facilitates supply transport. Featuring four-wheel drive with off-road tires and independent suspension, it maintains excellent passability across challenging terrains. Ideal for emergency rescue operations, disaster relief, personnel transportation, material transfer, and search-and-rescue missions.
Key Features
  • Large support area with 150mm track grounding ratio (70% coverage), suitable for soft, muddy, and complex environments with minimal subsidence and rolling resistance
  • Compact turning radius enables in-place steering capability
  • Track surface features grousers for superior traction and adhesion performance
  • 170mm+ chassis clearance provides exceptional climbing and obstacle clearance
  • Durable Q235 steel plate construction with excellent overall protection
  • Remote-controlled water cannon with adjustable pitch, spray patterns, and high flow rate
  • HD wireless video transmission system for real-time remote surveillance
  • Advanced wireless communication technology with long-range and strong anti-interference
Technical Specifications
Robot Body Parameters
Dimensions 1550 × 850 × 1000mm
Weight 300kg
Ground clearance 170mm
Maximum speed 0-1.6m/s (remote-controlled variable speed)
Climbing ability 30°
Obstacle clearance height 220mm
Power 4000W
Voltage 48V
Operating time 5 hours
Turning radius In-place rotation
Rated torque 167NM
Protection rating IP54
Remote control distance 500m
Extinguishing System Parameters
Maximum pressure 1.4 MPa
Flow rate 80 L/s
Range 80m
Water cannon angles Pitch: 30-90° | Rotation: 135° left/right
Water supply interface 80mm × 2
