Small Single Arm Tracked Robot Chassis with 10 Inch Touch Screen and Wireless Transmission for Counter Terrorism

ब्रांड नाम:	TOPSKY

विस्तार जानकारी
बिजली की खपत:	0.6 डब्ल्यू	आउटपुट वोल्टेज:	12v
श्रवण उपकरण आकार:	210100100 मिमी	सेंसर:	1/2.5 इंच सीएमओएस सेंसर
RADIUS:	20-50 मीटर, जबकि क्षेत्र की तीव्रता -80dbm है	मर्मज्ञ क्षमता:	लकड़ी 70 मिमी ； स्टील प्लेट 3 मिमी
टोपी का छज्जा:	519m/s	लेंस:	170 डिग्री
रफ़्तार:	20s	कोण:	120degree
तौलना:	15.5 किग्रा	आंतरिक मॉड्यूलेशन:	डीडीएस या एनालॉग
आधार - सामग्री दर:	≥0.2 बार/सेकंड	सुरक्षा स्तर:	आतंकवादी खतरों के विरुद्ध उच्च स्तर की सुरक्षा
प्रयोग:	आतंकवाद संचालन
प्रमुखता देना:	10 Inch Touch Screen Tracked Robot Chassis , Single Arm Tracked Robot Chassis , Wireless Transmission Tracked Robot Chassis

उत्पाद विवरण

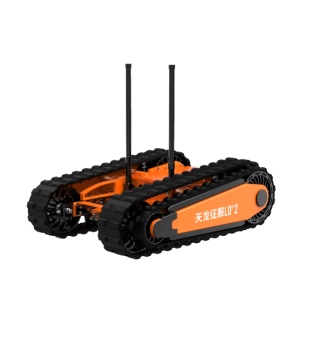

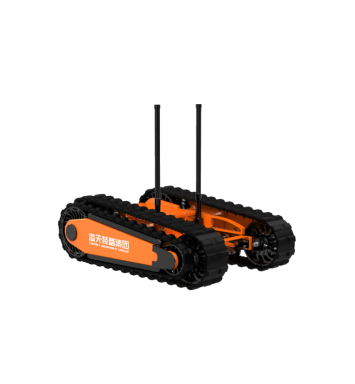

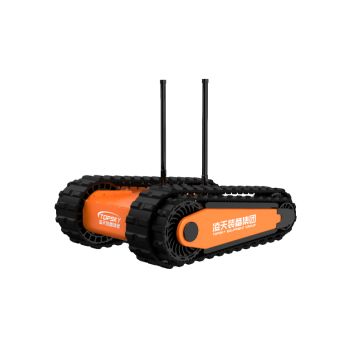

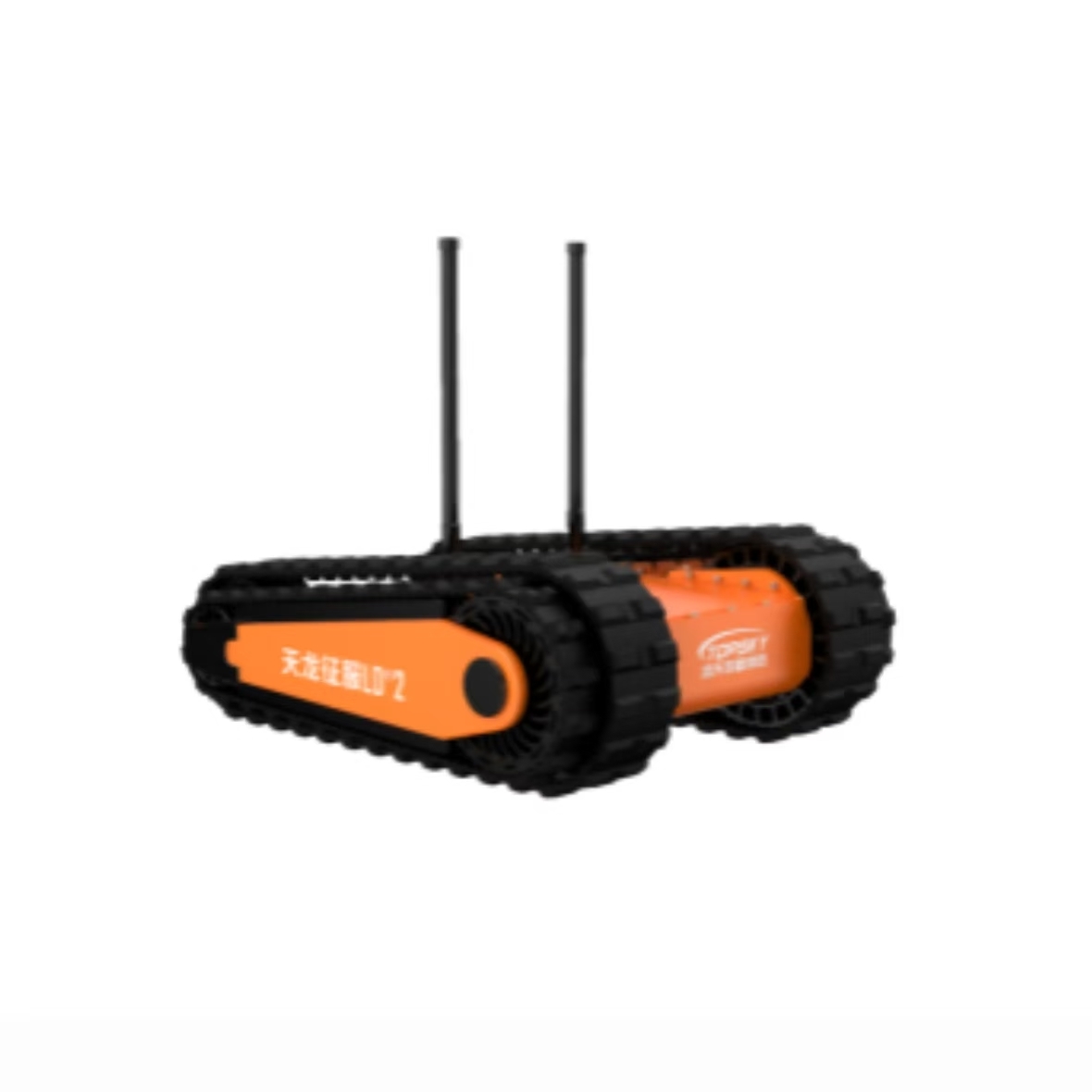

Small Single Arm Tracked Robot Chassis

Product Overview

Main functions: Designed to replace human operators in hazardous environments including flammable, explosive, or complex conditions for environmental reconnaissance and gas detection operations. Capable of accessing confined spaces such as under vehicles and shelving.
Application scenarios: Toxic gas facility inspection, forest reconnaissance, earthquake response, mine collapse assessment.
System options: Configurable with gas detection module, thermal imaging, autonomous navigation, LiDAR, voice communication, and cloud management platform.

Scope of Application

Application Type	Use Cases
Reconnaissance	Urban fire assessment, forest fire monitoring
Rescue Operations	Earthquake response, mine rescue, structural collapse, traffic incident response

Product Features

10-inch touch screen: High-definition anti-glare display with photo/video capture, storage, and playback capabilities
Wireless transmission: Supports WiFi, hotspot, and 4G connectivity
Thermal imaging: Temperature measurement with false color switching, configurable resolution, and lens options for varying distances and detection requirements

Multi-Gas Detection Capabilities

Substance	Detection Range
Methane	0-100% VOL
Carbon Dioxide	0-5% VOL
Carbon Monoxide	0-5000ppm
Nitrogen Dioxide	0-50ppm
Ammonia	0-100ppm
Oxygen	0-30% O2
Humidity	0-100RH
Temperature	-20°C to 100°C
