Heavy-duty Hydraulic Demolition Tool Set Long Service Life Automatic Switching Function Between High and Low Voltage

अब से संपर्क करें

Heavy-duty Hydraulic Demolition Tool Set Long Service Life Automatic Switching Function Between High and Low Voltage

न्यूनतम आदेश मात्रा :	1 सेट	मूल्य :	USD8000
पैकेजिंग विवरण :	एल्यूमीनियम केस	प्रसव के समय :	60 दिन
भुगतान शर्तें :	टी/टी	आपूर्ति की क्षमता :	10sets/महीना

उत्पत्ति के प्लेस:	चीन	ब्रांड नाम:	Topsky
मॉडल संख्या:	GYPC72

विस्तार जानकारी
हाइड्रोलिक मोटर पंप तेल टैंक क्षमता:	3.5एल	हाइड्रोलिक मोटर पंप का वजन:	24.84 किग्रा
हाइड्रोलिक विस्तारक वजन:	16.9 किग्रा	हाइड्रोलिक कतरनी उद्घाटन दूरी:	260 मिमी
हाइड्रोलिक विस्तारक अधिकतम विस्तार बल:	110.54 के.एन
प्रमुखता देना:	heavy-duty hydraulic demolition tool , automatic switching demolition tool , long service life demolition tool

उत्पाद विवरण

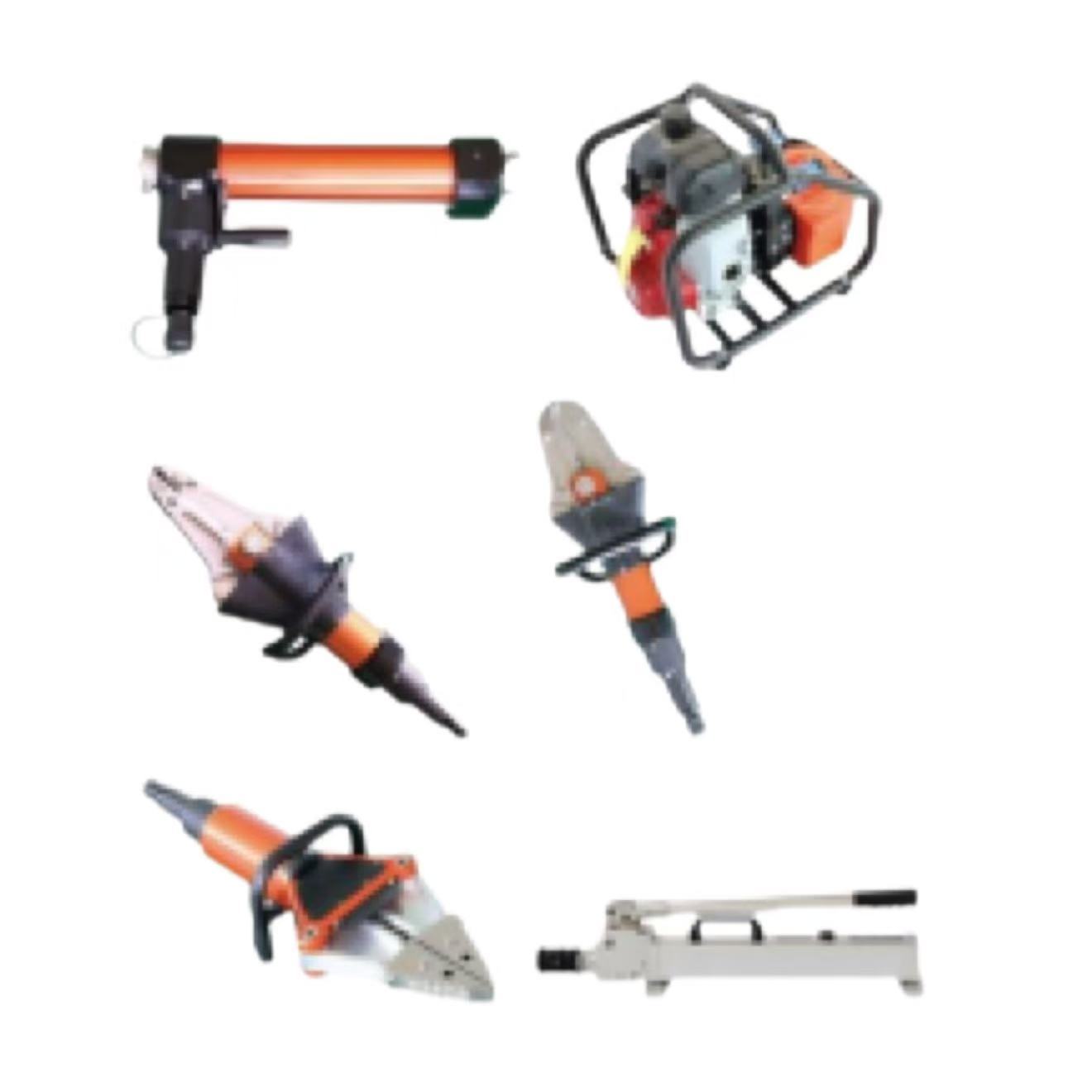

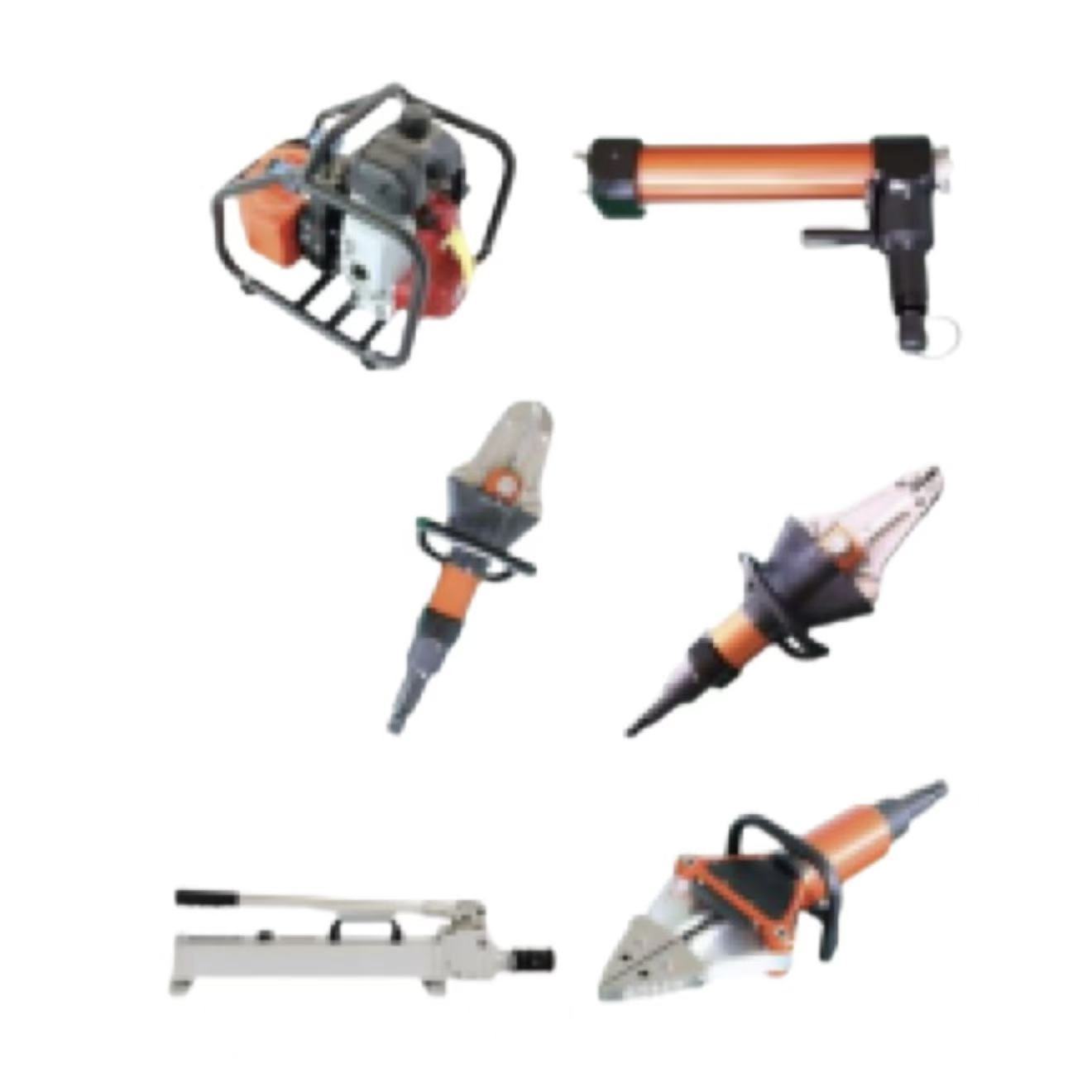

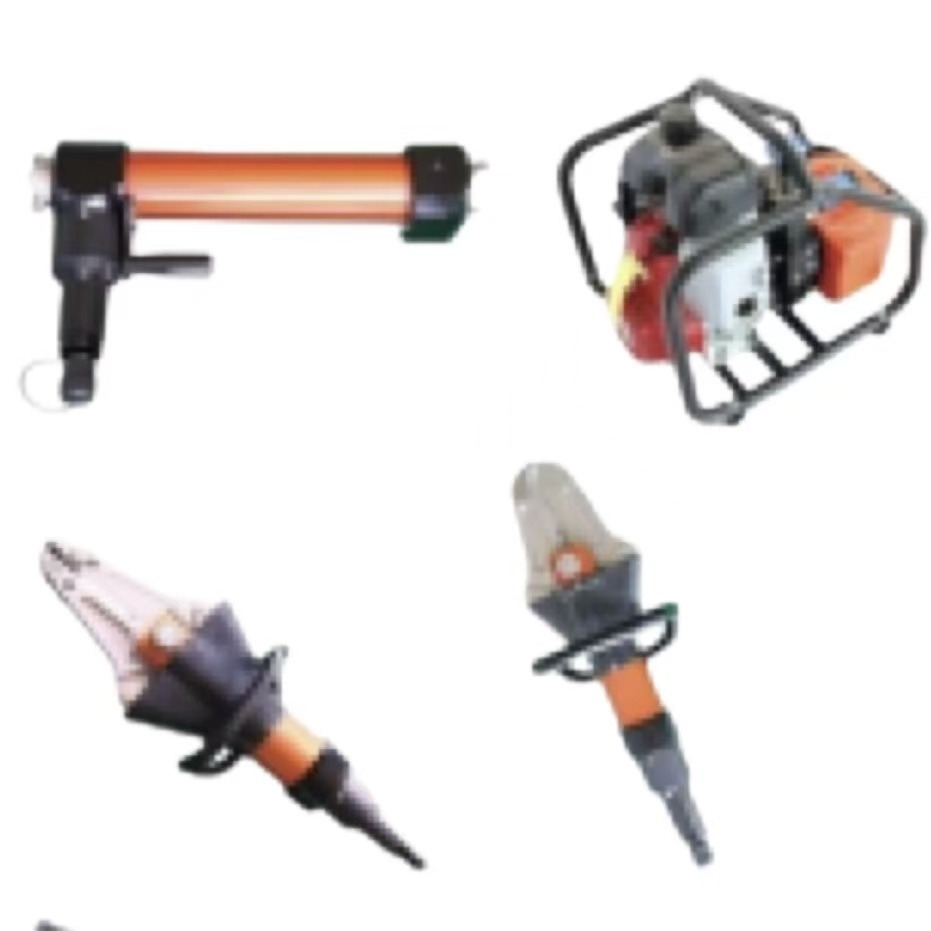

Product Overview

Hydraulic Motor Pump

Dual-output design serves as power source for hydraulic demolition tools (cutting, expanding, lifting)
Powered by high-performance Honda engine with high-pressure piston pump design
Dual interface allows simultaneous connection of two tools
Automatic high-low pressure conversion function
Compact, lightweight design reduces operator fatigue
Large output flow for faster response and shorter rescue times
Operates in temperatures from -30°C to 55°C using high-grade aviation hydraulic oil
"Speed multiplier valve" technology doubles rescue efficiency
Concentric shaft single pipe design for quick connection and safe operation
Automatic idle function reduces noise (68dB) and saves fuel

Hydraulic Cutter

High-strength alloy body with German imported sealing components
Lightweight aerospace aluminum alloy construction with ceramic surface treatment
Ergonomic handle design for comfortable operation
Bidirectional self-locking and automatic reset reversing valve
Large opening distance handles most rescue scenarios
No tail pipe design for easy transport and storage
Single pipe interface for quick connection and safe operation
Integrated handle/switch design for operator convenience
Multi-functional toothed blade increases cutting capacity

Hydraulic Expander

Powerful expansion, clamping and pulling functions
High-strength lightweight alloy steel construction
Bidirectional hydraulic lock with self-locking function
Protected moving parts ensure operator safety
Flat expansion head wedges into narrow gaps
"Acceleration valve" increases speed by 65% over traditional models

Hydraulic Cutter-Expander

Combines cutting, expanding and pulling functions
Regrindable high-strength alloy tool steel cutting edges
Protective covers on moving parts for operator safety
Self-locking hand control valve operation
Detachable cutting expansion head for quick replacement

Hydraulic Double-stage Jack

Opening, lifting and stabilizing functions
Anti-slip teeth at both ends
Two-way self-locking reversing valve
Rotatable crosshead for positioning in various situations
Double-stage design extends working distance

Hydraulic Manual Pump

72MPa rated working pressure
Large low-pressure output flow
Special handle for easy carrying
Compact size with quick interface
Suitable for flammable/explosive environments

Hydraulic Tubing

Single pipe design with Kevlar fiber construction
Pressure-resistant quick connect/disconnect
10+ year service life
360° rotation without twisting or leakage

Application Scope

Fire rescue
Emergency rescue

Main Technical Indicators

Component	Specification
Hydraulic Motor Pump	Power: 2kw Hydraulic oil tank capacity: 3.5L Weight: 24.84kg Rated working pressure: 72MPa High-pressure output flow: 0.7L/min (1.4L/min in doubling mode) Low-pressure output flow: 2.8 L/min (5.2L/min in doubling mode)
Hydraulic Cutter	Weight: 13.1 kg Opening distance: 260mm Cutting diameter (Q235A material): 35mm
Hydraulic Expander	Weight: 16.9kg Expansion distance: 740mm Minimum expansion force: 54.53kN Maximum expansion force: 110.54kN
Hydraulic Cutter-Expander	Weight: 13.6kg Minimum expansion force: 30kN Maximum expansion force: 44.32kN Cutting diameter (Q235A material): 35mm Expansion distance: 370mm Cutting opening distance: 260mm
Hydraulic Double-stage Jack	Weight: 20kg Length (retracted): 480mm First-stage jack force: 220kN, stroke: 290mm Second-stage jack force: 80kN, stroke: 280mm
Hydraulic Manual Pump	Weight: 6.2kg Operating force: 350N Hydraulic oil tank capacity: 1.5L Rated working pressure: 72MPa
Hydraulic Hose	2 sets included, 10m each Pressure-resistant quick connect/disconnect

Product Configuration

1 hydraulic mobile pump
1 hydraulic cutter
1 hydraulic expander
1 hydraulic cutter-expander
1 hydraulic double-stage jack
1 hydraulic manual pump
2 hydraulic hoses (10 meters each)

Frequently Asked Questions

Q: Do you offer quantity discounts?

A: Yes, please contact us for special pricing on large quantity orders.

Q: What is the typical delivery time?

A: Standard products (up to 50 pieces) typically ship in 10-15 days.

Q: Do you have international distributors?

A: Yes, we have distributors in Korea, Singapore, Malaysia, UK, Iran, India and other countries.

Q: Can we use our own branding?

A: Yes, we offer OEM services with proper licensing agreements.
