Unmanned off-road platform 6X6 differential wheeled robot chassis with 500kg maximum load capacity 35° climbing angle and 13km/h speed

उत्पत्ति के प्लेस: चीन ब्रांड नाम: TOPSKY

विस्तार जानकारी

घूर्णन: सामने की भुजा 360° अधिकतम टॉर्क: 50 एनएम
बॉडी वेट: 16 किलोग्राम घुमाएँ: 0-120RPM
पैर रक्षक: 450 मीटर/एस DIMENSIONS: उपकरण प्रकार के अनुसार भिन्न होता है, कॉम्पैक्ट डिज़ाइन को प्राथमिकता दी जाती है
उड़ाने का समय: 2.5 सेकंड माप काल: 10 सेकंड से कम
झूठी अलार्म दर: ≤1% ज़िंदगी: 100 गोलीबारी
भंडारण तापमान: -45℃~65℃; श्रवण उपकरण आकार: 210*100*100 मिमी
लांचर व्यास: 38 मिमी हथियारों: 567.7m/s
सूट का वजन: बख्तरबंद ब्लास्ट प्लेटों के साथ लगभग 29 किग्रा
प्रमुखता देना:

500kg maximum load capacity unmanned off-road platform

,

35° maximum climbing angle rescue escort transportation robot

,

13km/h maximum driving speed 6X6 differential wheeled robot chassis

उत्पाद विवरण

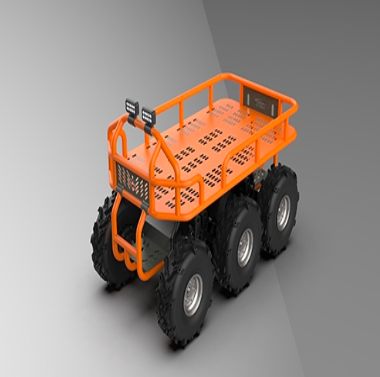

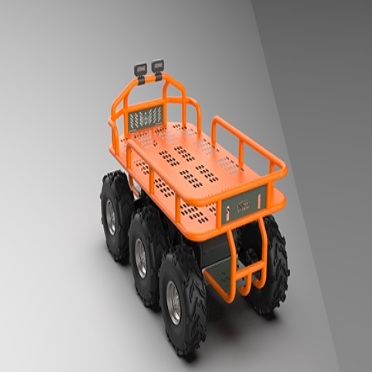

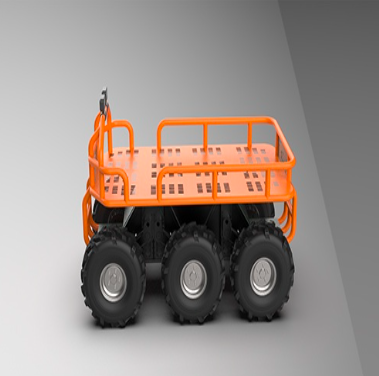

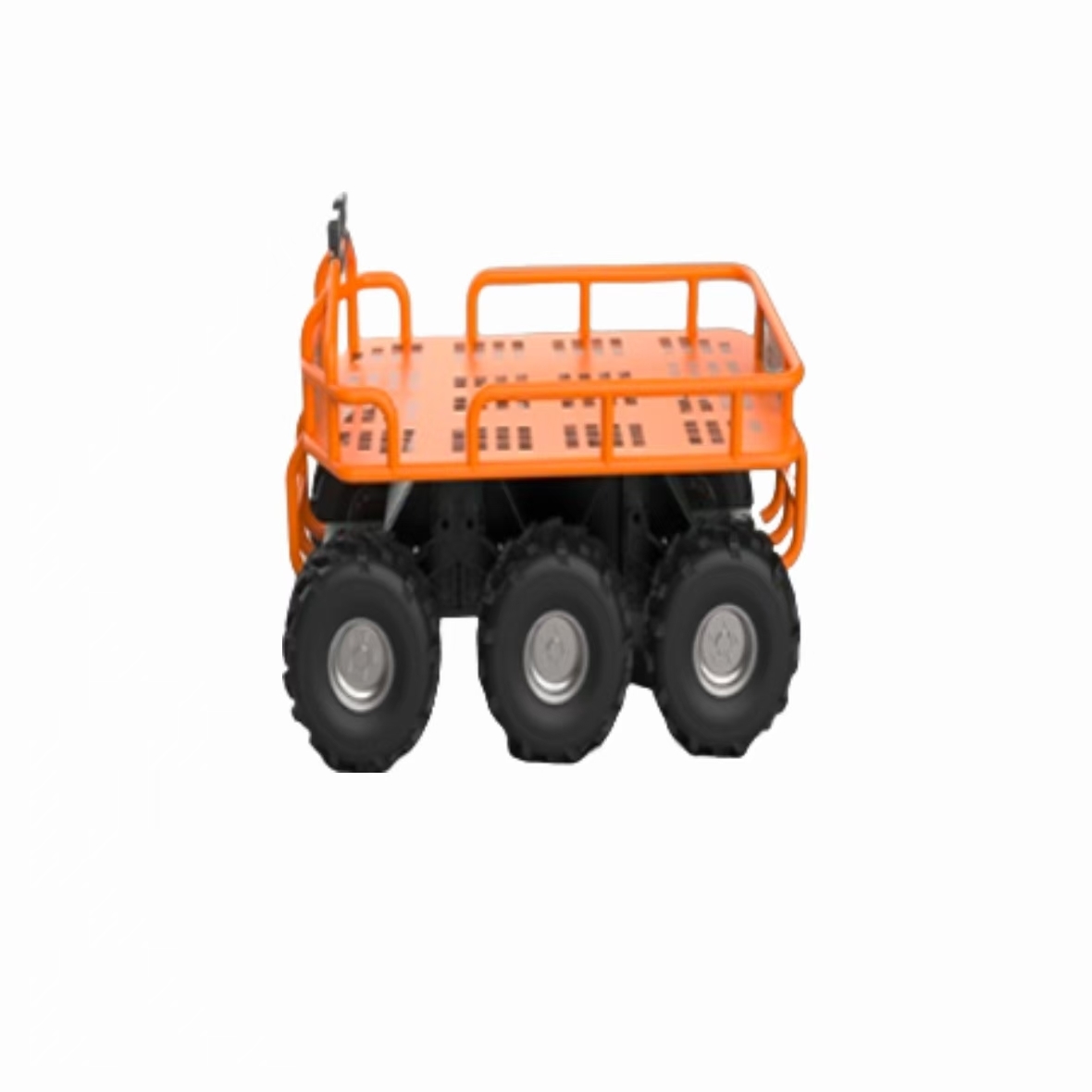

Unmanned Off-Road Platform (Rescue Escort Transportation Robot)
Overview
The 6X6 differential wheeled robot chassis is a high-performance mobile platform engineered to excel in complex outdoor environments and diverse operational requirements. Featuring a unique six-wheel configuration and advanced differential drive technology, this platform serves as an ideal foundation for specialized operation robots, scientific research and exploration robots, and industrial application robots. It delivers a robust and reliable mobility solution for demanding robotic applications.
Application Scenarios
  • Rescue operations for large-scale fires in petroleum and chemical enterprises
  • Firefighting and rescue in collapse-prone areas including tunnels and subways
  • Emergency response in environments with potential explosive gas or liquid leaks
  • Rescue missions in smoke-filled or toxic gas environments
  • Close-proximity firefighting operations where personnel safety is at risk
Technical Specifications
Product Name 6X6 Differential Wheel Robot Chassis
Model TIGER-03
Power System Electric, Lithium Battery
Chassis Dimensions ≤ 2270mm (L) × 1250mm (W) × 845mm (H)
Cabin Dimensions ≤ 1350mm (L) × 350mm (W) × 528mm (H)
Weight 550kg
Maximum Load Capacity 500kg
Motor Power 3kW × 6
Motor Selection 96V High-Precision DC Wheel Hub Motor
Steering Method Differential In-Place Steering
Maximum Driving Speed 13km/h
Maximum Obstacle Height 300mm
Maximum Obstacle Width ≤ 400mm
Ground Clearance 280mm
Maximum Climbing Angle 35°
Surface Treatment Whole Machine Baking Paint
Main Materials Alloy Steel / Carbon Steel Square Tube / Aluminum Alloy
Tire Options Regular Radial Tires / Low-Pressure Tires (Customizable)
