Panoramic Slope Monitoring Radar with 360° Coverage, 0.1mm Accuracy, and 8kg Portable Design for Emergency Rescue
Panoramic Slope Monitoring Radar with 360° Coverage, 0.1mm Accuracy, and 8kg Portable Design for Emergency Rescue Panoramic Slope Monitoring Radar with 360° Coverage, 0.1mm Accuracy, and 8kg Portable Design for Emergency Rescue Panoramic Slope Monitoring Radar with 360° Coverage, 0.1mm Accuracy, and 8kg Portable Design for Emergency Rescue Panoramic Slope Monitoring Radar with 360° Coverage, 0.1mm Accuracy, and 8kg Portable Design for Emergency Rescue Panoramic Slope Monitoring Radar with 360° Coverage, 0.1mm Accuracy, and 8kg Portable Design for Emergency Rescue
अब से संपर्क करें

Panoramic Slope Monitoring Radar with 360° Coverage, 0.1mm Accuracy, and 8kg Portable Design for Emergency Rescue

उत्पत्ति के प्लेस: चीन ब्रांड नाम: TOPSKY

विस्तार जानकारी
पैकेट: 1pc/बैग बाधा पार करने की ऊंचाई: 300 मिमी,
मोटर: 12वी भंडारण तापमान: -45℃～65℃;
प्रोडक्ट का नाम: आतंकवाद विरोधी उपकरण बॉडी वेट: 16 किलोग्राम
नियंत्रण इकाई का आकार: 263x206x156 मिमी से अधिक नहीं ड्रिल का आकार: 4/5/6/8 मिमी
अविकसित चौड़ाई: 60-140 सेमी अंकुश: एसएमएल
पैनल सामग्री: अरामिद यूडी फैब्रिक (केवलर) समुद्र तट का आकार: 73*16*50 सेमी
छवि प्रारूप: JPEG या BMP ताले तोड़ देना: 15
सुरक्षा स्तर: 9मिमी और .44मैग के लिए एनआईजे IIIA
प्रमुखता देना:

360° Coverage Slope Monitoring Radar

,

0.1mm Accuracy Panoramic Radar

,

8kg Portable Emergency Radar

उत्पाद विवरण

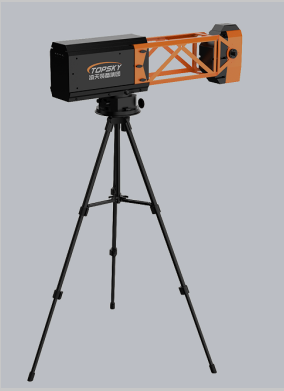

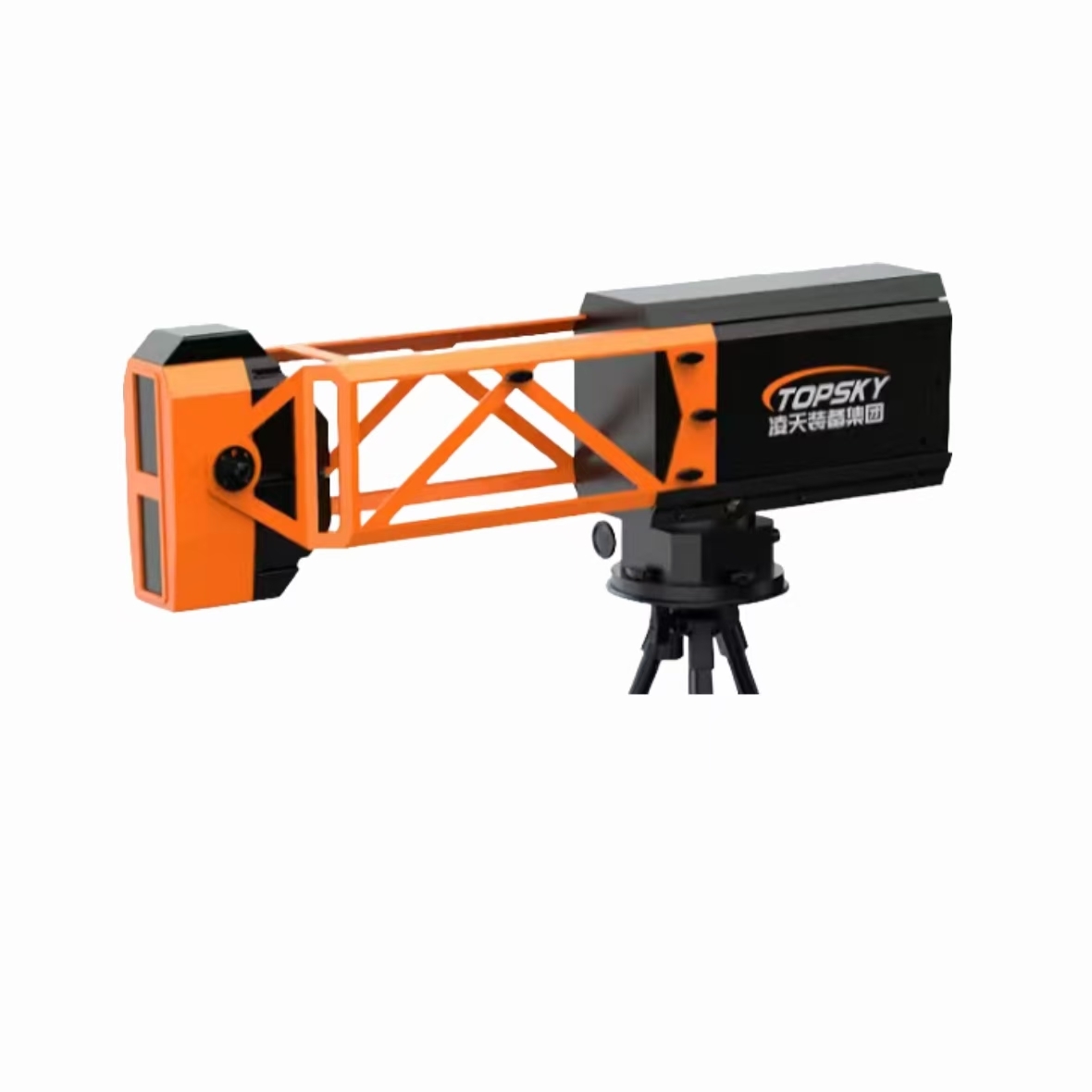

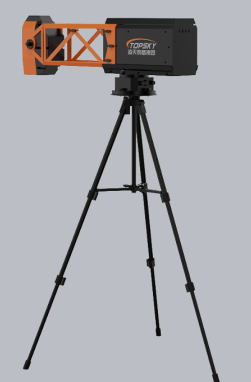

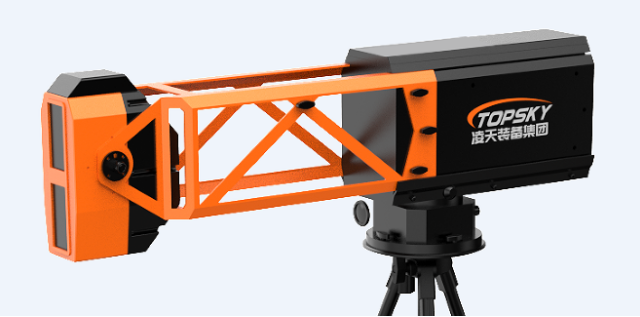

Panoramic Slope Monitoring Radar
The PSR-5000J emergency ultra-portable slope monitoring radar utilizes circular arc synthetic aperture radar technology with broadband frequency modulation continuous wave signals and phase difference interferometry measurement. This advanced system provides comprehensive 360° coverage, precise deformation measurement, and reliable all-weather operation.
Designed specifically for emergency rescue operations, this equipment emphasizes lightweight construction, portability, and low power consumption. With industry-leading size, weight, and power efficiency metrics, it enables rapid deployment in critical situations.
Key Applications
  • Open pit mines and geological landslides/collapses
  • Emergency rescue operations and disaster response
  • Water conservancy dams and infrastructure monitoring
  • Urban subsidence and subway transportation systems
  • Large bridges, high-rise buildings, and wind turbine towers
  • Railway slopes and transportation corridors
Technical Features
  • Precision Measurement: 0.1mm deformation accuracy with 30-second data update rate
  • All-Weather Operation: Microwave penetration capability ensures 24/7 monitoring unaffected by rain, snow, fog, or smoke
  • Complete Coverage: 360° panoramic monitoring without distance or angle blind spots
  • Edge Computing Architecture: Integrated processing, positioning, and communication functions within compact 8kg body
  • Rapid Deployment: Folded dimensions of 0.5×0.3×0.25m fit in 24-inch transport case for airline consignment
  • Remote Control: Electric pitch angle adjustment for flexible monitoring of varied terrain
  • Network Connectivity: B/S architecture supports local WiFi and remote 4G/5G cloud monitoring
  • Advanced Algorithms: Adaptive atmospheric disturbance compensation with less than 2mm/day error
  • Smart Alert System: Four-level sound/light, SMS, and email alarms with manual/auto monitoring points
  • 3D Visualization: Fast-rendering terrain matching algorithm with sub-meter accuracy
  • Rugged Design: IP66 protection rating and operational capability down to -40°C
Portability & Deployment
Weighing only 8kg with compact folded dimensions, the system enables single-person transport and rapid setup. The integrated edge computing architecture eliminates external processing requirements, allowing immediate operational readiness at emergency sites to protect rescue personnel from secondary disaster threats.
