होम उत्पादकाउंटर टेररिज्म इक्विपमेंटExplosion-proof infrared camera with real-time detection capability dual-light fusion and high-sensitivity infrared detector for precise temperature measurement
Explosion-proof infrared camera with real-time detection capability dual-light fusion and high-sensitivity infrared detector for precise temperature measurement
Explosion-proof infrared camera with real-time detection capability dual-light fusion and high-sensitivity infrared detector for precise temperature measurement Explosion-proof infrared camera with real-time detection capability dual-light fusion and high-sensitivity infrared detector for precise temperature measurement Explosion-proof infrared camera with real-time detection capability dual-light fusion and high-sensitivity infrared detector for precise temperature measurement Explosion-proof infrared camera with real-time detection capability dual-light fusion and high-sensitivity infrared detector for precise temperature measurement Explosion-proof infrared camera with real-time detection capability dual-light fusion and high-sensitivity infrared detector for precise temperature measurement
अब से संपर्क करें

Explosion-proof infrared camera with real-time detection capability dual-light fusion and high-sensitivity infrared detector for precise temperature measurement

उत्पत्ति के प्लेस: चियान ब्रांड नाम: TOPSKY

विस्तार जानकारी
उत्पाद का आकार: 365 (एल) * 110 (डब्ल्यू) * 65 मिमी (एच) विशेषता: गैर संपर्क
समुद्र तट का आकार: 73*16*50 सेमी बैटरी की आयु: 2 घंटे
माप काल: ≤2 सेकंड रेटेड आउटपुट दबाव: 63 एमपीए
पंप वजन: 10 किलो कार्य पद्धति: चरणबद्ध सरणी प्रणाली (अज़ीमुथ चरण स्कैन)
तरंग लंबाई: 447nm; 415nm दूरी का उपयोग: ≤2 मी
प्रशिक्षण आवश्यक: प्रभावी उपयोग के लिए विशेष प्रशिक्षण रफ़्तार: 2
उच्च दबाव प्रवाह: 0.5L/मिनट हथियारों: 567.7m/s
जांच प्रतिक्रिया समय: ≤2s वास्तविक समय का पता लगाने की क्षमता के साथ
प्रमुखता देना:

Real-time detection infrared camera

,

Dual-light fusion thermal imager

,

High-sensitivity infrared handheld device

उत्पाद विवरण

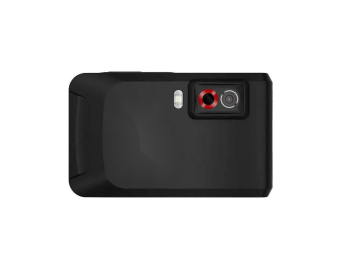

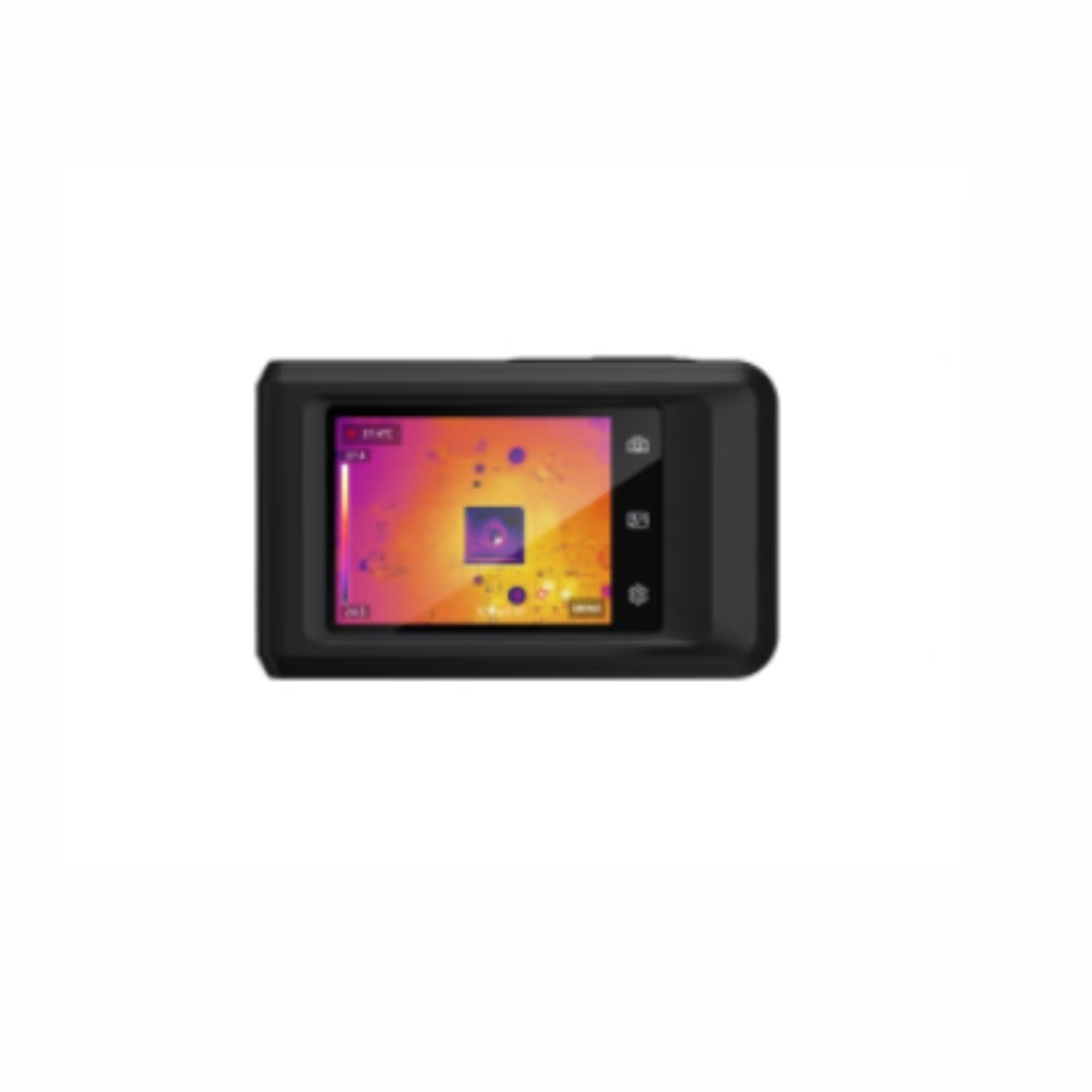

Explosion-Proof Infrared Camera
The explosion-proof infrared thermal imager is a cutting-edge handheld temperature measurement device that combines visible light imaging with infrared thermal imaging technology. Featuring advanced image processing capabilities including dual-light fusion, picture-in-picture display, and multiple pseudo-color modes, this device enables precise identification of image details and accurate temperature analysis.
Key Features
  • Continuous digital zoom from 1.0x to 4.0x
  • Video recording and capture capabilities
  • Real-time viewing and secondary analysis via mobile app and computer software
  • Wide temperature measurement range: -20°C to 550°C
  • Macro lens expansion support
  • Fusion display of thermal imaging and visible light images
  • Multiple pseudo-color display modes
  • Real-time scene temperature measurement
  • Video capture, screenshot, and media file storage
  • Wi-Fi and hotspot connectivity
Technical Specifications
Temperature Measurement Range -20°C to 550°C
Temperature Measurement Accuracy ±2°C or ±2% (whichever is greater)
Digital Zoom 1X - 4X, minimum change 0.1X
Thermal Imaging Resolution 256 × 192 pixels
Spectral Response Band 8 - 14μm
Pixel Size 12μm
Output Frame Rate ≤ 25Hz
Thermal Sensitivity ≤ 50mK @ f/1, 300K, 30Hz
Operating Temperature Range -10°C to 50°C
Extended Detection Distance 0.5m - 1.2m
Additional Features High/low temperature alarm, Wi-Fi, Bluetooth
Display Size 3.5 inches
Display Resolution 640 × 480
Visible Light Resolution 8 megapixels
Storage Capacity 16GB
LED Lighting White LED
Battery Life 4 hours
Waterproof Rating IP54

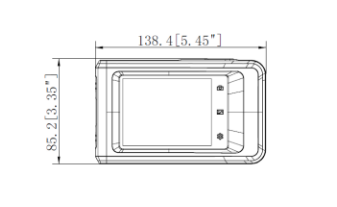

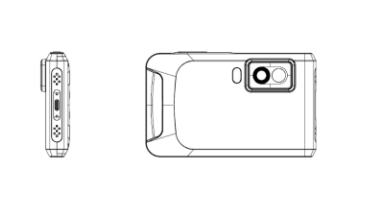

Dimensions 138.5 mm × 85.2 mm × 23.6 mm
Weight 218g
